Why did the dropper break?
1. Design and Assembly Defects (Most Common Cause)
This is the most likely point of failure. A packaging system requires all components to fit perfectly; any dimensional error in any part can lead to catastrophic consequences.
Dropper Too Long: This is the primary point of suspicion. If the glass dropper exceeds the safe depth of the bottle's interior, the tip will strike the bottom of the bottle directly when the consumer fully tightens the cap. The force of continuing to turn the cap translates into a powerful downward pressure, continuously compressing the glass dropper. Glass is very fragile under pressure, especially at an uneven point of contact, and this pressure can cause the dropper to shatter instantly.
Mismatched Bottle Bottom Design: Many glass bottles have a notch at the bottom (called a "bottom arch" or "punt"). If this notch is irregularly shaped or has a sharp protrusion in the center, an excessively long dropper will contact the bottom of the bottle at a very small point, concentrating the pressure highly at that point and greatly increasing the risk of breakage.
Rough handling during assembly: On automated or manual production lines, if excessive force or improper angle is used when pressing the glass dropper into the cap, tiny, invisible cracks may appear on the upper part of the glass tube. This hidden "internal injury" will rapidly expand under subsequent transport vibrations or the pressure of tightening the cap, eventually causing the entire dropper to break.
2. Manufacturing Defects in the Glass Dropper Itself
Even with perfect dimensions, quality issues with the glass dropper itself are a significant cause of breakage.
Unrelieved Internal Stress: Improper annealing during the glass manufacturing process can leave significant residual internal stress. Such stressed glass droppers are extremely brittle and highly sensitive to temperature changes and even minor physical impacts, sometimes even spontaneously shattering.
Minor Imperfections: Tiny air bubbles or impurities may be introduced into the glass during manufacturing. These imperfections become stress concentration points. When the dropper is subjected to external force, cracks will propagate from these weakest points.
Uneven Wall Thickness: If one side of the dropper's wall is significantly thinner than the other, it creates a structural weakness, making it more susceptible to breakage under pressure or impact.
3. External Environmental Factors
Even if a product is intact when it leaves the factory, subsequent processes can still lead to breakage.

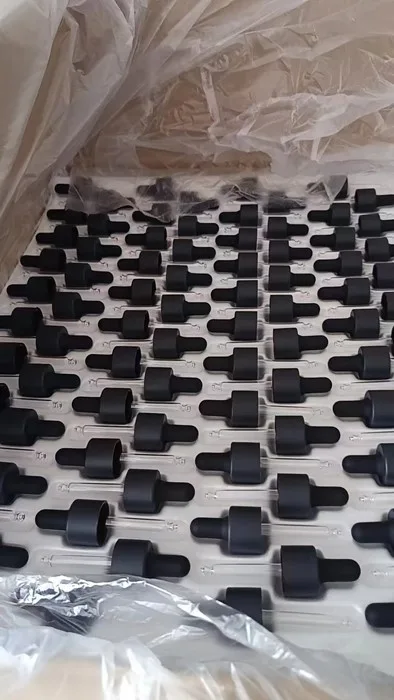

Severe Impacts During Transportation: This is a very common cause. If the product is dropped or subjected to severe impacts during transportation or storage, the dropper inside the bottle, as a rigid component, will collide with the hard bottle wall. This instantaneous impact force is enough to break the glass dropper. Qualified packaging suppliers will minimize this by designing cushioning linings (such as the foam padding shown in the picture).
Extreme Temperature Differences (Thermal Shock): If the packaging is stored for a long time in a very cold environment (such as a warehouse in winter) and then quickly moved to a warm environment, or vice versa, the glass will experience enormous internal pressure due to thermal expansion and contraction. If the glass itself has minor defects or internal stress, this "thermal shock" may cause it to spontaneously break.
How to avoid such problems?
A responsible brand and supplier must eliminate such problems through rigorous quality control processes.
**Develop precise technical drawings:** Detailed dimensional specifications must be developed for each component (bottle, dropper, nozzle, cap). Crucially, the drawings must clearly specify that the total length of the glass dropper must be at least 2-3 mm shorter than the internal net depth of the bottle. This safety margin is the lifeline to prevent the dropper from touching the bottom.
**Strict Incoming Quality Control (IQC):** Suppliers must conduct sampling inspections upon receiving the glass dropper raw materials. Use precision tools such as calipers to measure the length, inner and outer diameters of the droppers, and visually inspect for obvious bubbles, cracks, or defects.
**Compatibility & Assembly Testing:** Before mass production, the final bottle and final dropper cap must be trial-assembled. Repeatedly and forcefully tighten the cap to simulate consumer usage behavior, ensuring that the dropper will not touch the bottom of the bottle under any circumstances. Simultaneously, vibration and drop tests are conducted on the assembled finished products to simulate potential risks during transportation.
Optimize transport packaging design: The outer packaging and inner lining of the product must be scientifically designed and tested to meet certain impact resistance standards (such as ISTA standards). Ensure that each product is securely fastened to maximize cushioning against external impacts.
